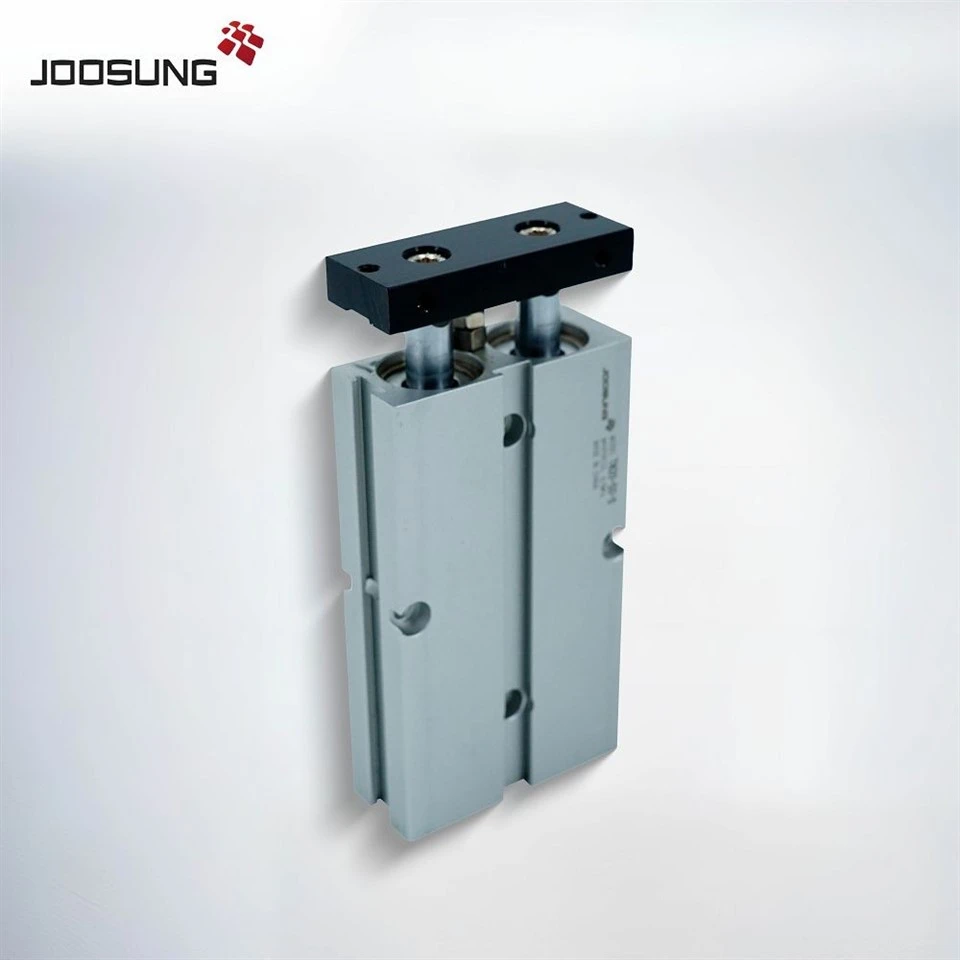

TheSehlopha sa TNke compact,thibela{{0}setaele sa cylinder ea pneumatice hahiloe ho latela maemo a Airtac/Taiwan (AT/DC)-mefuta e menyenyane ea li-SMC MGPM. 'Mele oa eona oa monolithic oa aluminiamo o lokiselitsoe ho tiea ho hoholo le boemo bo fokolang, ho etsa hore e tšoanelehe hantle bakeng sa ho kengoa sebakeng-sistimi e thata ea othomathike.
TN e kopanya likhase tsa khase le li-grooves tsa magnetic switch ka kotloloho 'meleng bakeng sa ho ikamahanya le maemo le ts'ebetso e tšepahalang. E sebelisoa ho{1}}litlhophiso tse phahameng tsa ho itšebetsa joalo ka ho ngola lileibole, ho kenya lisebelisoa, le litsamaiso tsa ho khetha ka nepo.
|
Mokhoa oa ho odara TN Series Pneumatic Cylinder |
|||
|
TN |
20 |
50 |
S |
|
Mohlala |
Bore boholo |
Cylinder Stroke |
Magnet |
|
TN:Twin{0}}rod cylinder(Mofuta o sebetsang habeli) |
10 16 20 25 32 |
S: Ka makenete |
|
Hloka ae phahameng-sesebediswa sa compact actuatorbakeng sa sebaka-sistimi ea bohlokoa?
TheTN Series Block{0}Style Pneumatic Cylindere fana ka moetso o mobe oa -ea boemo bo tlase, o hahiloeng-ka mokhoa o bonolo, le khokahanyo e tobileng ea sensor bakeng sa othomathike e hlalefileng.
Ikopanye le rona hona joalebakeng sa li-database tsa tekheniki, lifaele tsa CAD, le qotso e ikhethileng!
|
Tlhaloso: |
|||||
|
Bore size: |
10 |
16 |
20 |
25 |
32 |
|
Mofuta oa ts'ebetso: |
Ho Etsa Habeli |
||||
|
Mokelikeli: |
Moea (o tla sefshoa ka 40μm filter element) |
||||
|
Khatello ea Ts'ebetso: |
0.2 ~ 1.0MPa |
0.15 ~ 1.0MPa |
|||
|
Khatello ea bopaki: |
1.5MPa(215psi) |
||||
|
Mocheso(℃): |
-20~70 |
||||
|
Lebelo la lebelo (mm/s): |
30~500 |
||||
|
Stroke e fetolehang(mm): |
-5~0 |
||||
|
Mofuta oa Cushion: |
Bumper |
||||
|
Mamello{{0}e sa Potoloheng: |
± 0.4 likhato |
± 0.3 likhato |
|||
|
Boholo ba Kou: |
M5X0.8 |
PT1/8 |
|||
|
Series Model |
Mehlala e Fumanehang |
|
TN10 Letoto |
TN10-10S, TN10-20S, TN10-30S, TN10-40S, TN10-50S, TN10-60S, TN10-70S, TN10-80S, TN10-90S, TN10-100S |
|
TN16 Letoto |
TN16-10S, TN16-20S, TN16-30S, TN16-40S, TN16-50S, TN16-60S, TN16-70S, TN16-80S,TN16-90S, TN16-100S, TN15STN-STN12 TN16-175S |
|
Letoto la TN20 |
TN20-10S, TN20-20S, TN20-30S, TN20-40S, TN20-50S, TN20-60S, TN20-70S, TN20-80S,TN20-90S, TN20-100S, TN20-501STN20 TN20-175S |
|
Lethathamo la TN25 |
TN25-10S, TN25-20S, TN25-30S, TN25-40S, TN25-50S, TN25-60S, TN25-70S, TN25-80S,TN25-90S, TN25-100S, TN25-TN5STN22 TN25-175S |
|
Lethathamo la TN32 |
TN32-10S, TN32-20S, TN32-30S, TN32-40S, TN32-50S, TN32-60S, TN32-70S, TN32-80S,TN32-90S, TN32-100S, TN35STN32-TN22 TN32-175S |
